PMS1000 is a combination of the PM1000 polarimeter with the EPS1000 polarization scrambler/transformer.

Key features

• All functionalities and data of PM1000 and EPS1000

• Ideal for synthesis of desired polarization states and polarimetric characterization of devices under test (DUT)

• Opto-mechanical 2x2 switch (optional) can connect output of LiNbO3 polarization transformer directly to input of polarimeter. Insertion loss of each path is therby increased by ~0.5 dB (<1 dB).

• Another opto-mechanical 2x2 switch (optional) can exchange output of LiNbO3 polarization transformer and input of polarimeter, to determine DUT reciprocity by backward measurement.

• Power consumption: ~15 W (+5 V from included power supply 100-240 V)

• Available as a desktop unit (with fixation for opto-mechanical switches) and as module cards

• Switching between PM1000 and EPS1000 via control buttons, or parallel operation via USB

Configuration

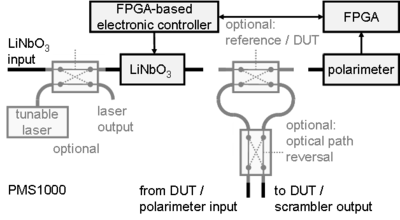

PMS1000 for measurement of Mueller and Jones matrices and PMD of a device under test (DUT). Optional components are shaded. EPS1000 polarization scrambler/transformer and PM1000 polarimeter are also individually accessible.
