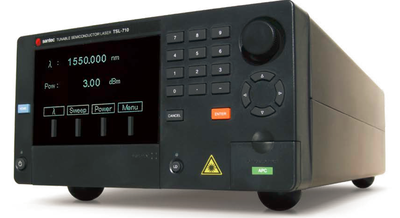

The TSL-710 is Santec’s flagship, highest performance tunable laser. Combining high output power with high signal-to-noise ratio makes the TSL-710 an invaluable tool for optical testing. An innovative external cavity design has been implemented to lower the optical ASE noise, leading to a high signal-to-noise ratio of over 90dB/0.1nm, while still maintaining a high output power of over +10dBm. The TSL-710 is also equipped with features such as fine-tuning and coherence control. GPIB interface with the industry standard SCPI command set allow full remote control and measurement automation.

The TSL-710 is an outstanding tool for testing next generation components for Dense Wavelength Division Multiplexing (DWDM) such as multi-input, high extinction ratio devices such as Wavelength Selective Switch (WSS). The TSL-710 has excellent wavelength characteristics with high wavelength accuracy of ±2pm, high wavelength resolution of 0.1pm, and narrow linewidth of <100kHz,features that make it suitable for cutting edge research in nanophotonics. The TSL-710 covers a wide tuning range of 160nm and is designed to improve production inspection throughput by doubling the scan repetition rate over conventional lasers. The laser linewidth is less than 100kHz, making it suitable to be used as a local oscillator in coherent transmission, as well as a tool for interferometry and sensing applications. In addition, the TSL-710 is available for WDL and PDL measurement with support of our dedicated software.

Features

- Wide Wavelength Range 1480-

- High Wavelength Accuracy ±

- Wavelength Resolution 0.1pm

- High Output Power 10dBm

- High Signal-to-Noise Ratio 90dB/

- Narrow Linewidth 100kHz

Applications

- Optical component characterization

- Fiber optic transmission testing

- Photonic material characterization

- Interferometry

- Optical spectroscopy
