General Photonics’ MDL-002 family of motorized variable optical delay lines allow optical path length adjustment of up to 560 ps in a single-pass. Driven by a DC motor with an integrated encoder, the MDL-002 has a delay resolution of less than 0.3μm (1 fs).
Three configurations of the MDL-002 are available:
an integrated unit for use on the bench

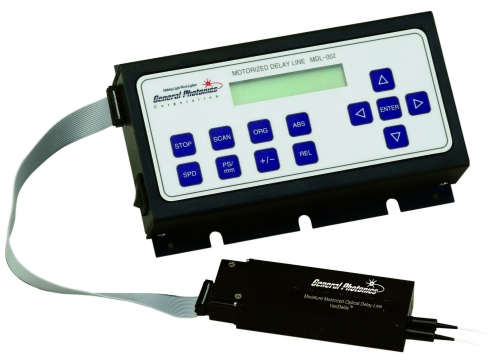

a two piece unit with the optical head and control unit separated for installation into customer equipment

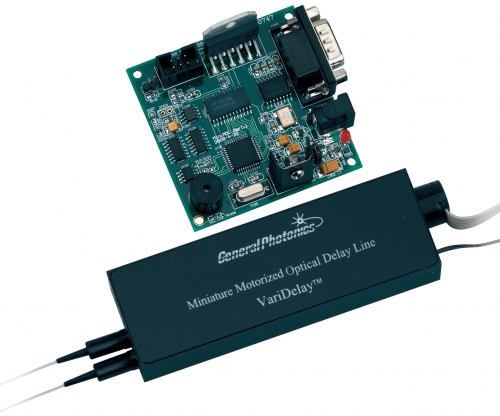

an OEM version with a miniature controller board. All three versions can be remote controlled by a PC or a micro-processor through an RS-232 interface.
The delay line is available with either single mode or PM fiber pigtails.
FEATURES
- High resolution
- Low backlash
- Low Insertion Loss
- High delay to length ratio
APPLICATIONS
- Optical Coherence Tomography (OCT) systems
- Scientific Instrument Control
- Network optical path length control or timing alignment
