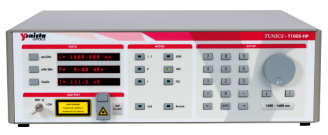

The complete portfolio of the TUNICS T100S-HP features 6 tunable lasers. They have been explicitly named after the wavelength tuning bands that are covered:

The /O and /CL lasers have 10 dBm minimum output power and are dedicated to the main telecom applications.

The /O+, /ES, /SCL and /CLU lasers have 8 dBm minimum output power and the largest wavelength ranges available on the market, making it possible to cover the full telecom wavelength band from 1240 to 1680 nm at 8 dBm with just 3 lasers! This is done by combining the /O+, /ES and /CLU lasers.

The TUNICS T100S-HP offers the most advanced and cost effective solution for all R&D and Manufacturing environments. Important innovations have been implemented that enable extension of the wavelength range and increase of the output power without any compromise on other specifications of the T100S. It guarantees a signal to source spontaneous emission ratio (SSSER) higher than 90 dB.

Main Features

- Power ≥ 8 dBm / Peak ≥ 13 dBm

- Dynamic range higher than 90 dB

- Tuning range up to 200 nm

- Wavelength accuracy ± 20 pm

- Sweeping & Stepping operations

Applications

- Fiber optic transmission testing

- Passive optical component testing

- Optical amplifier testing

- Thin film growth monitoring

- Optical alignment

- Fiber optic sensors

- Spectroscopy

- Interferometry

- Photonic material characterization
