The tunable external cavity laser modules are high-performance lasers based on TUNICS technology that operate in step mode. They feature a narrow linewidth and a tuning range of typically 100 nm. A large choice of modules is available in the 1260 to 1680 nm range.

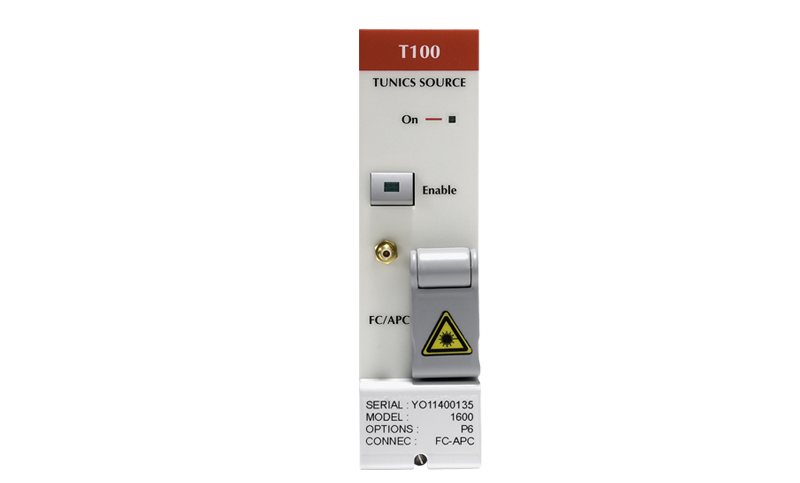

T100 modules are high-performance External Cavity Lasers using TUNICS technology which leads to a high output power over the whole tuning range. Six T100 modules are available: 1310, 1415, 1520, 1550, 1575 and 1620.
Main Features
| Part Number | T100 1310 | T100 1415 | T100 1520 | T100 1550 | T100 1575 | T100 1620 |
| Wavelength Range (nm) | P= +3 (dBm) | 1260–1360 | 1360–1470 | 1465–1575 | 1490–1610 | 1520–1630 | 1560–1680 |
| P= +6 (dBm) | 1290–1340 | 1390–1445 | 1495–1555 | 1520–1590 | 1540–1610 | 1580–1660 |
| SSSER | > 90 dB / 0.1 nm typical |
| Wavelength accuracy | ±0.2 nm |
| Wavelength stability | ±0.01 nm/h (±0.01 nm / 24 h typical) |
Wavelength setting resolution | 0.01 nm (0.001 nm option R) |
| Mode | Step mode |
Applications
- Fiber optic transmission testing
- New modulation formats such as OFDM and coherent transmission
- Optical amplifier testing
- Spectroscopy
- Interferometry
- Photonic material characterization
